RF Indoor/Outdoor Series

Curved Cabinet Design

  • Meet different Shapes and Radians needs
  • The straight cabinet and arc lock cabinet can be combined with each other



Super compatibility

  • Indoor and Outdoor different Pixel modules can share the cabinets and power box.



Modular design

  • Power box modular design can be quickly plugged.



Front and rear maintenance

  • Can be fully Front and Rear maintenance, magnetic suction structure, maintenance is more fast and simple.



Anti-knock design

  • The box corners design can flip the corners to avoid Lamps touch the ground, effectively achieving, handling and safety Protection of the lamp beads during the installation process.



Safety lock design

  • The Module with safety lock effectively prevents safety hazards caused by accidental falling during maintenance, Make safety first.
Category:

Description

Discover our RF Indoor/Outdoor Series rental LED displays, featuring a curved cabinet design for versatile shapes and radians. The super compatibility allows indoor and outdoor pixel modules to share cabinets and power boxes seamlessly. Enjoy the modular design of the power box for quick setup, along with front and rear maintenance capabilities for easy servicing. The anti-knock design protects lamp beads during installation, while safety lock-equipped modules prioritize safety during maintenance. Experience unmatched versatility, convenience, and safety features with our RF Serials series, perfect for a wide range of rental display needs.

Parameters(Indoor):

Product Name RF1.9 RF2.6 RF2.9 RF3.9
Pixel Configuration SMD1515 SMD1515 SMD2121 SMD2121
Pixel Pitch(mm) 1.953 2.6 2.976 3.91
Pixel Matrix Per Panel 256×256 192×192 168×168 128×128
Module Dimensions (mm) 250x250x15.7 250x250x15.7 250x250x15.7 250x250x15.7
Cabinet Dimensions (mm) 500x500x84 500x500x84 500x500x84 500x500x84
Panel Material Magnesium Alloy Magnesium Alloy Magnesium Alloy Magnesium Alloy
Cabinet Weight (kg) 7.5 7.5 8 8
Color Grayscale (Bit) 14 14 14 14
Refresh Rate (Hz) 3840 3840 3840 3840
Brightness (nit) 800-1000 800-1000 800-1000 800-1000
Horizontal/Vertical Viewing Angle (°) 140/140 140/140 140/140 140/140
AC Input Voltage (V) AC:100-240V/200-240V AC:100-240V/200-240V AC:100-240V/200-240V AC:100-240V/200-240V
AC Input Power Maximum Value (W/m²) 530 530 530 530
AC Input Power Typical Value (W/m²) 180 180 180 180
Working Temperature(C) -10~40 -10-40 -10~40 -10~40
IP Rating (Front/Back) IP30/IP30 IP30/IP30 IP30/IP30 IP30/IP30
Storage Humidity(RH) 10%-90%non-condensing 10%-90%non-condensing 10%-90%non-condensing 10%-90%non-condensing
Working Humidity (RH) 10%~90%non-condensing 10%-90%non-condensing 10%-90%non-condensing 10%-90%non-condensing
Cabinet Installation Type Rental Rental Rental Rental



Parameters(Outdoor):

Product Name RF2.9 RF3.9 RF4.8
Pixel Configuration SMD1516 SMD1921 SMD1921
Pixel Pitch(mm) 2.976 3.91 4.81
Pixel Matrix Per Panel 168×168 128×128 104×104
Module Dimensions (mm) 250x250x15.7 250x250x15.7 250x250x15.7
Cabinet Dimensions (mm) 500x500x84 500x500x84 500x500x84
Panel Material Die-casting aluminum Die-casting aluminum Die-casting aluminum
Cabinet Weight (kg) 8.5 8.5 8.5
Color Grayscale (Bit) 14 14 14
Refresh Rate (Hz) 3840 3840 3840
Brightness(nit) 4000-5000 4000-5000 4000-5000
Horizontal /Vertical Viewing Angle (°) 140/140 140/140 140/140
AC Input Voltage (V) AC:100-240V/200-240V AC:100-240V/200-240V AC:100-240V/200-240V
AC Input Power Maximum Value (W/m²) 720 720 720
AC Input Power Typical Value (W/m²) 240 240 240
Working Temperature(C) -10~40 -10~40 -10~40
IP Rating (Front/Back) IP65/IP54 IP65/IP54 IP65/IP54
Storage Humidity(RH) 10%~90%non-condensing 10%~90%non-condensing 10%~90%non-condensing
Working Humidity(RH) 10%~90%non-condensing 10%~90%non-condensing 10%~90%non-condensing
Cabinet Installation Type Rental Rental Rental

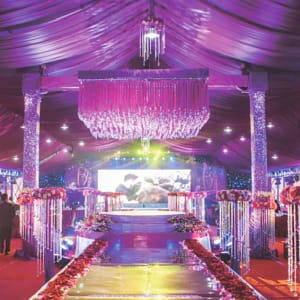

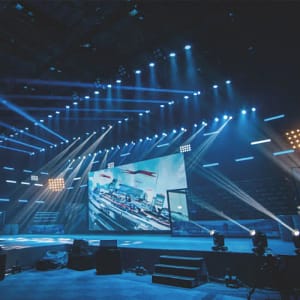

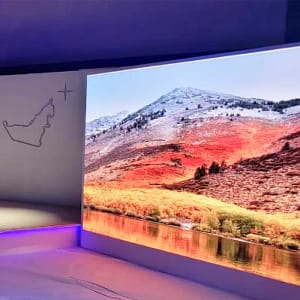

Application Scenarios:
